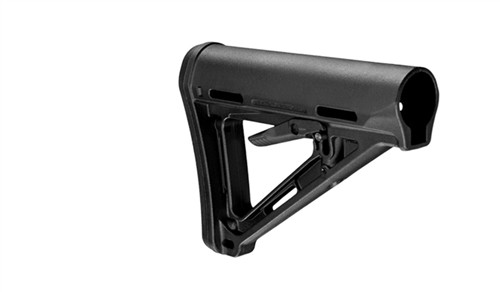

Magpul MOE Mil-Spec Carbine Mil-Spec AR15 Stock

The Magpul MOE Stock Mil-Spec Model is a drop-in replacement butt-stock for AR15/M16 carbines using mil-spec sized receiver extension tubes. Designed for light, fast action the streamlined A-frame profile avoids snagging and shields the release latch to prevent accidental activation. The extra-power lock mechanism uses a premium chrome-silicon spring to avert auto-collapse failure and maintains strength by resisting spring relaxation. The Mil-Spec Model includes a standard 0.30" rubber butt-pad which provides positive shoulder purchase to prevent slippage even with body armor or modular gear.

Magpul Original Equipment (MOE) is a line of firearm accessories designed to provide a high-quality, economical alternative to standard weapon parts. The MOE line distinguishes itself with a simplified feature set, but maintains Magpul engineering and material quality.

Made in U.S.A.

Features

• Mounts on mil-spec sized carbine receiver extension tube (not included) from manufacturers such as Colt, Armalite, S&W, LMT, and others (please see the note below)
• Premium chrome-silicon lock spring provides positive locking and long service life
• Sloping cheek weld combines a slim profile with user comfort
• Shielded release latch prevents snagging and accidental operation
• Side mounting slots accept optional cheek risers for NON-AR15/M16 applications
• Compatible with Magpul ASAP and other receiver-mount sling attachments
• Sling Mounts:
  • Rear/Bottom - 1.25" Sling loops
  • Toe - Lanyard hole for custom para-cord rigs

Included Accessories*

• Rubber Butt-Pad, 0.30" (Removable)

Optional Accessories*

• Extended Rubber Butt-Pad, 0.55"
• Enhanced Rubber Butt-Pad, 0.70"
• Cheek Risers (0.25", 0.50", 0.75" for NON-AR15/M16 applications)

Specifications**

• MOE, Mil-Spec (w/ Rubber Butt-Pad, 0.30"):
  • Weight, Stock: 0.50 lb.
  • Weight, w/ Rec. Extension: 0.80 lb.
  • Length, Stock: 6.90 in.
  • LOP Adjustment Range: 3.25 in.
  • LOP, M4 Collapsed: 10.70 in.
  • LOP, M4 Extended: 13.95 in.

NOTE: There are two basic sizes of M4 Carbine receiver extensions (buffer tubes): mil-spec and commercial-spec. If you have a commercial-spec extension on your rifle, make sure to order the Commercial-Spec MOE.

If you have one of the uncommon military tubes with an extended slant-back, along with the Mil-Spec MOE you will also need to order the Extended Rubber Butt-Pad, 0.55" (sold separately).

* Specifications based on standard-length (flat-back) M4 Carbine receiver extension and may vary depending on tube manufacturer.

Standard Rubber Butt-Pad, 0.30" weight: 0.08 lb. Optional Extended Rubber Butt-Pad, 0.55" weight: 0.11 lb. Optional Enhanced Rubber Butt-Pad weight: 0.13 lb.
